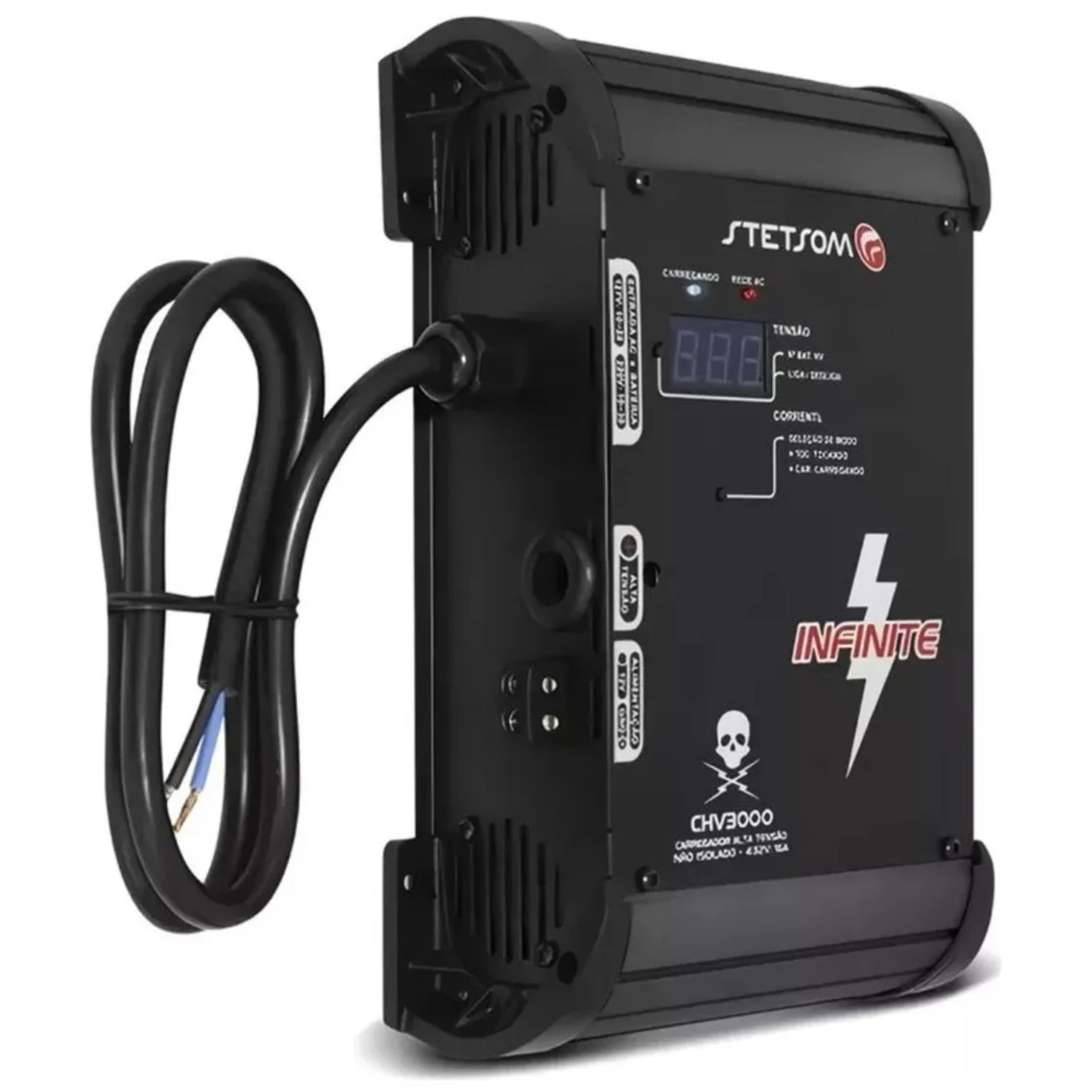

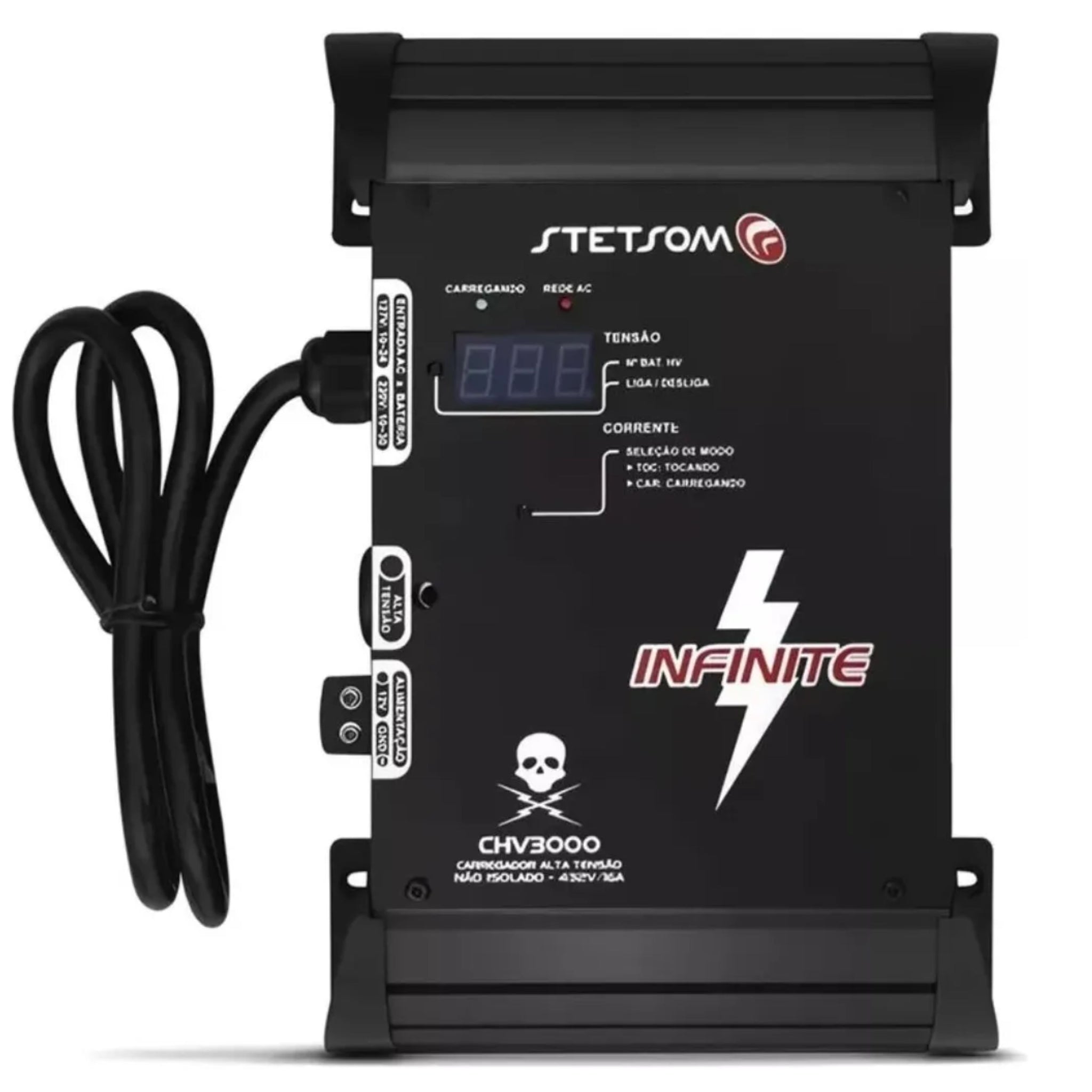

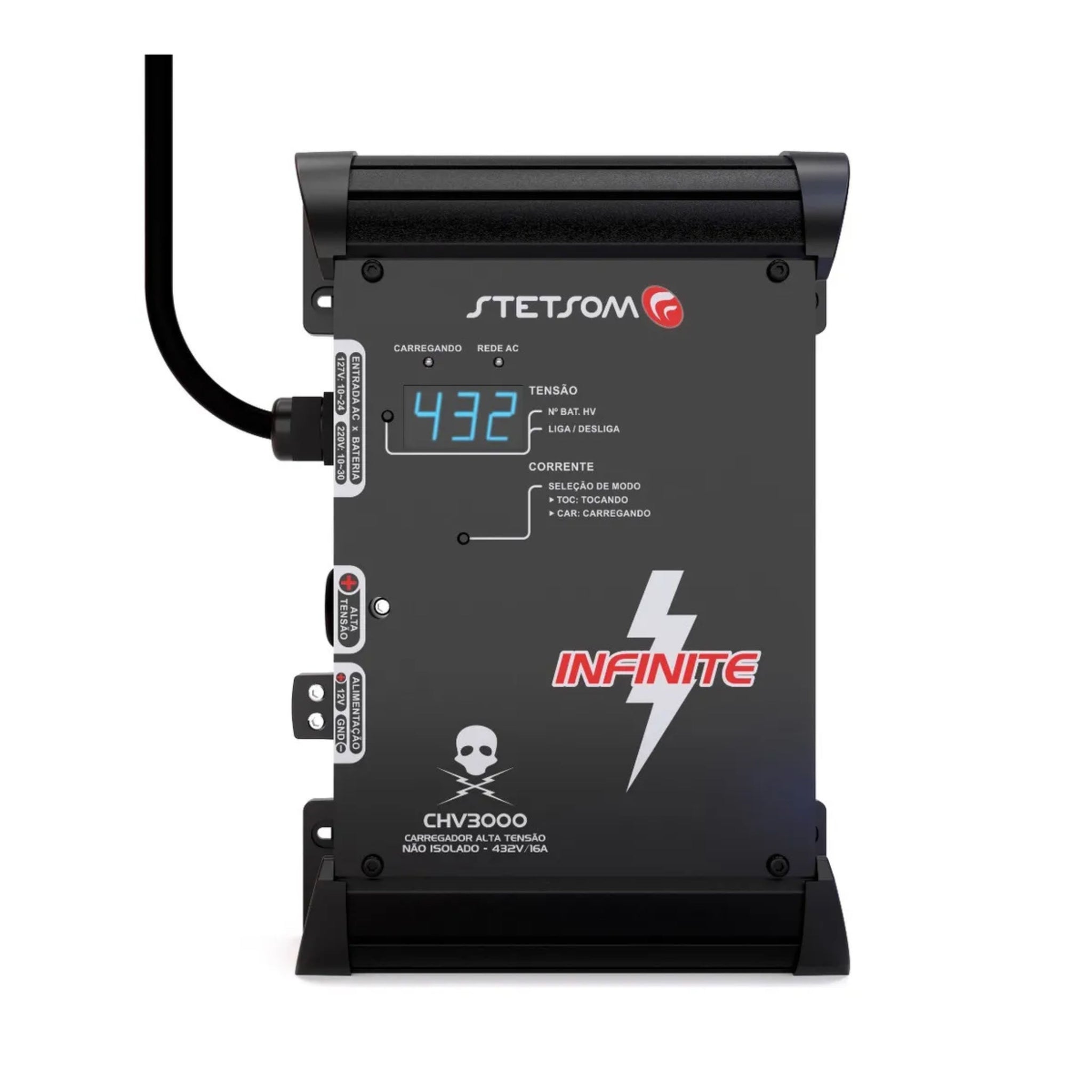

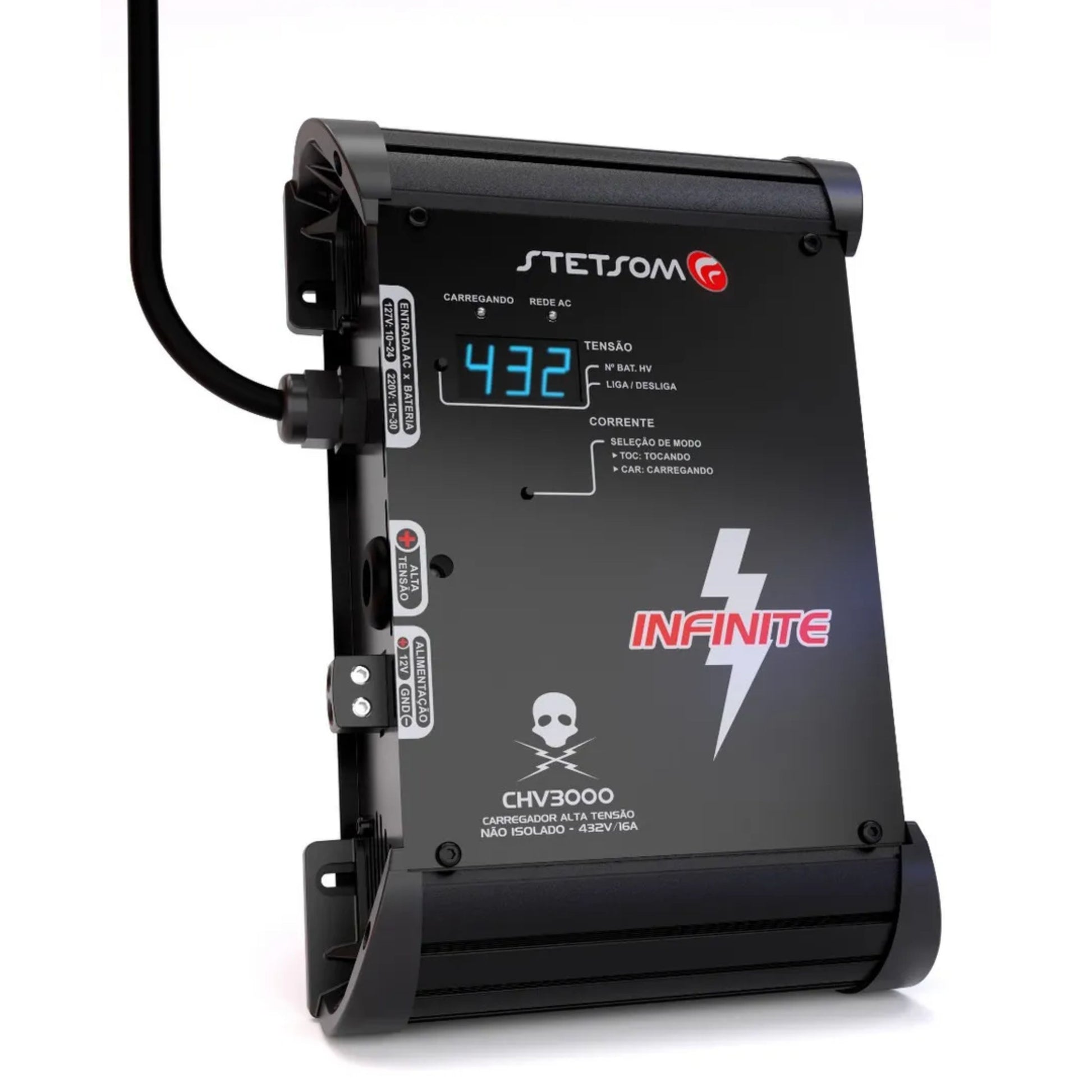

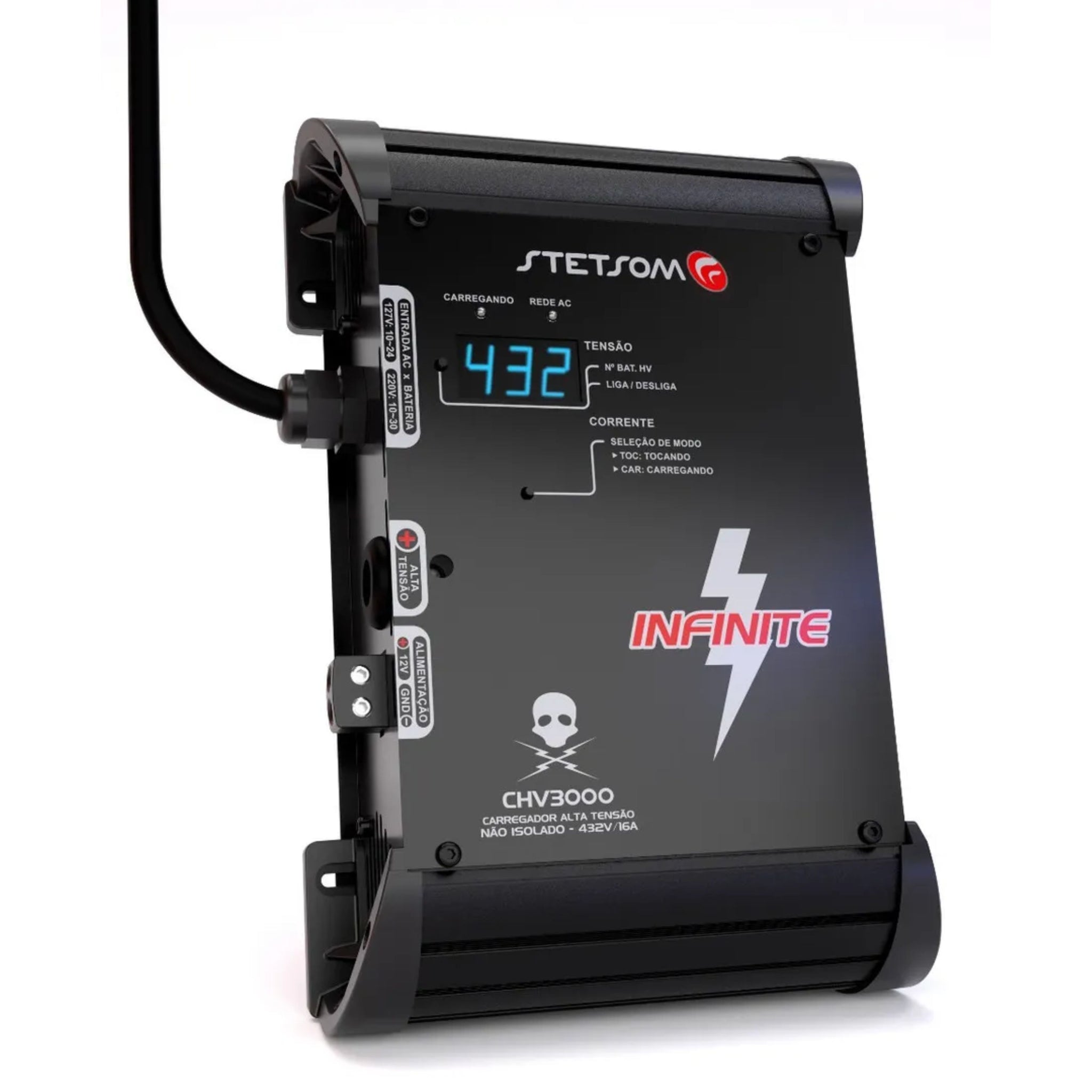

The Stetsom CHV3000 Charger was developed to charge High Voltage power systems (battery banks connected in series) directly from the 127Vac or 220Vac power grid, delivering high efficiency and versatility.

It features an integrated automatic charge management system that controls the battery charging process, increasing the charge to its maximum level without overcharging, preventing irreversible damage to the batteries. This provides greater safety, convenience, and a significant advantage over conventional chargers.

Technical Specifications

Charging System:

• From 10 to 24 batteries in series on 127V AC

• From 10 to 30 batteries in series on 220V AC

• Auxiliary battery operating voltage: 9V to 12V DC

Protections

• Internal fuse for High Voltage output polarity reversal

• 12V power supply polarity reversal protection

CHV 3000 Specifications

• DC Operating Voltage: 432V DC (MAX)

• AC Operating Voltage: 127V and 220V AC

• Output Current: 16A (220V AC)

• AC Consumption: 18A (127V) and 33A (220V)

• Dimensions (H x W x L): 77.8 x 189.5 x 285.5 mm

• Weight: 6.6 lb
